"Roubo" Folding Bookstand

  I started this project awhile ago, but didn't get around to finishing it until just recently. It's a bookstand based on a famous design (only among woodworkers I suppose) by the great 18th century French cabinetmaker, Andre Roubo. The bookstand is made entirely of one piece of wood and traditionally is built using entirely hand tools, as they work best for this project. I found this project in a magazine and simply had to try my hand at making it. I had recently purchased a Japanese Ryoba saw and thought that would work best for this project. Perhaps a Japanese saw really shouldn't be used on a French project, but hey, Roubo...Ryoba, their pretty close. Ha! Just as a heads up, this project was made entirely with hand tools and the chisels I used were very dull at the time, so that accounts for many (not all) of my mistakes and the fact that this was initially an experimental project. Well, enough with my jabber, I show you some pics and explain as I go.

First I cut the board to length

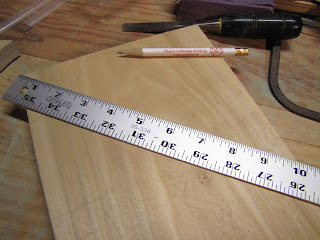

Next I divided the board into five equal parts for the hinge by placing a yardstick across the board at a number divisible by 5. Then I marked every two inches and transferred that point down to the part where the hinge would be.

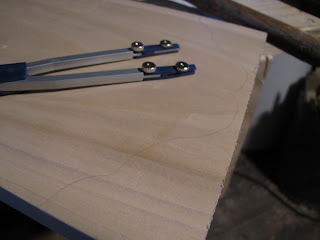

Then I layed out the decorative profile.
The cross section/guidelines for the hinge
Five equal sections for the hinge based on the points layed out earlier

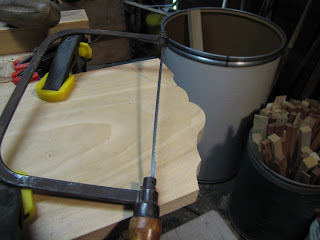

Cut out the profile with coping saw
Coming along pretty good!

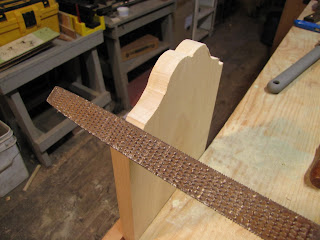

Some touch up on the edges

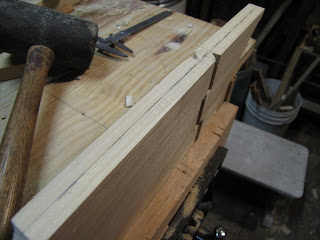

Chiseling out the waste parts for the hinge. I chiseled down at a 45 degree angle until I was exactly halfway through the wood.

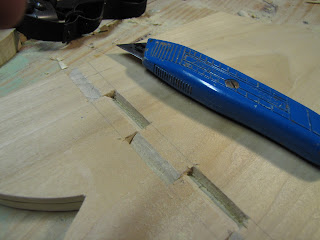

Both sides of the hinge chiseled out!
Cutting line through the center of the board.

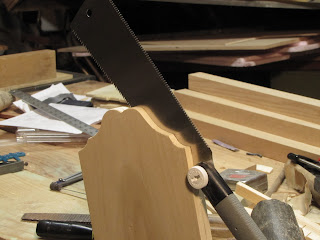

Sawing the board in half.
I saw down to the hinge point but no further.
And do the same for the bottom half.
Due to the fact that my chisels were poorly sharpened, the hinge didn't come out as clean as I had hoped and so began the many, many hours of sanding and fine tuning the hinge until finally the stand opened up to a complete 90 degrees.
The finished stand

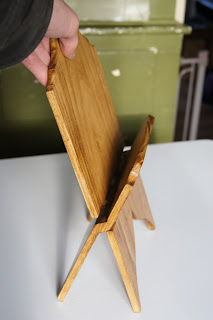

The stand halfway open.
The finished stand completely open.
It works beautifully!
The finished stand turned out very well, considering the tools I used weren't in great condition, and my mom loved it! I plan on making another one now that I my tools are properly sharpened and considering all that I learned while making this one, I'm sure it will turn out even better. Thanks alot for reading and stay tuned for more projects soon!
